product arrow MSI H310M PRO-VH - CoffeeLake

Price Rp 1.040.000 Beli
Berat 1,00 Kg

H310M PRO-VH

  • Supports 8th Gen Intel® Core™ / Pentium® Gold/ Celeron® Processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 2666MHz
  • Audio Boost: Reward your ears with studio grade sound quality.
  • EZ Debug LED: Easiest way to troubleshoot.
  • PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance,stability and strength.
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

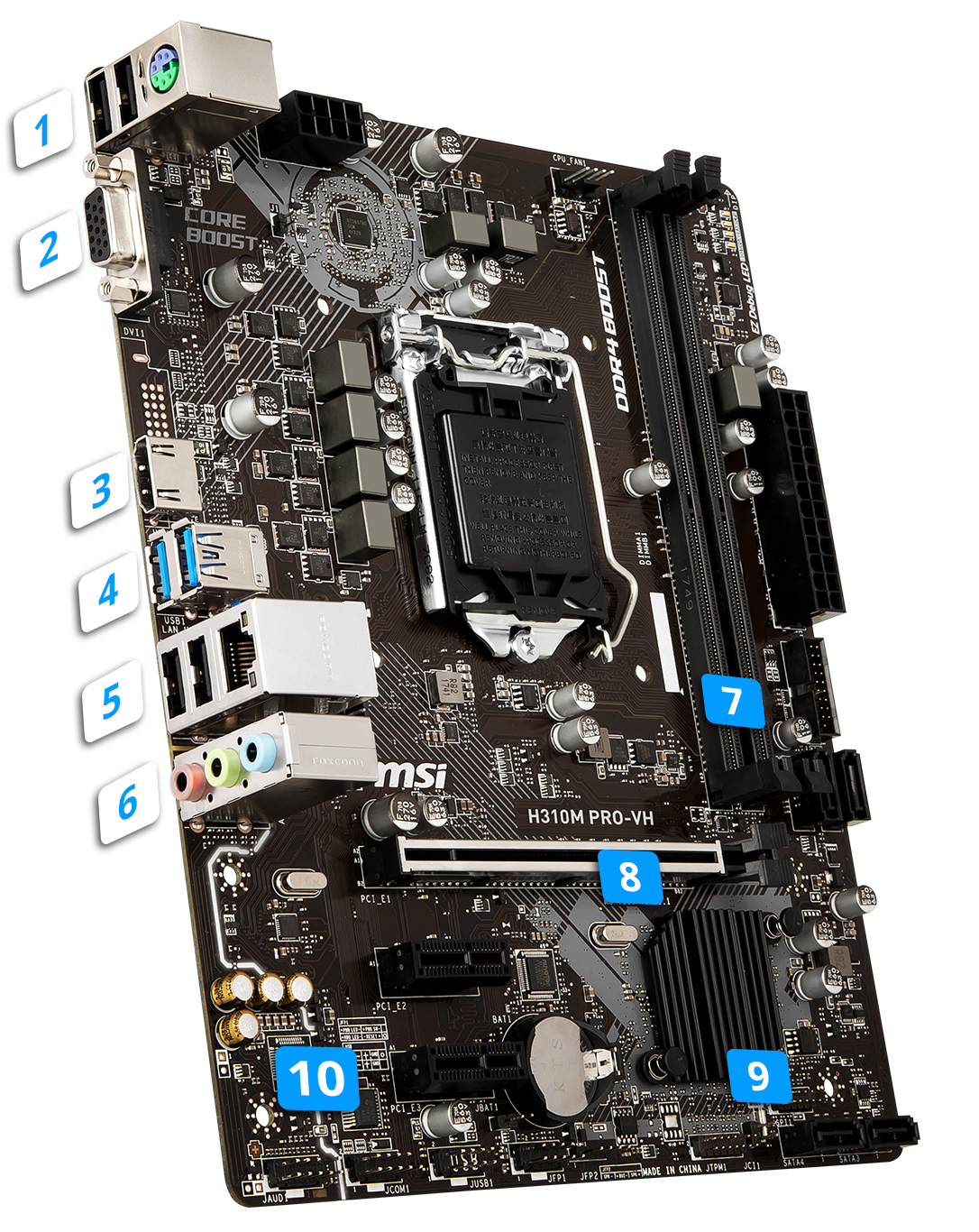

STRONGER THAN STEEL

  1. USB 2.0 & PS/2 Combo Ports
  2. VGA Port
  3. HDMI Port
  4. 2 x USB 3.1 Gen1 Ports
  5. USB 2.0 & LAN Ports
  6. Audio Jacks
  7. DDR4 Boost
    Optimized traces and isolated memory circuitry
  8. PCI-E Steel Armor
    Protecting VGA cards against bending and EMI
  9. Heavy plated heatsink
    Leading heatsinks design, for maximum cooling
  10. Audio Boost
    Reward your ears with studio grade sound quality.

Specification :

Processor

Supports 8th Generation Intel® Core™ Processors, Pentium® Gold and Celeron® Processors for Socket LGA1151

See supported processors

Chipset

Intel® H310 Chipset

Memory

  • 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 2666/ 2400/ 2133 MHz
  • Dual channel memory architecture
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

Slots

  • 1 x PCIe 3.0 x16 slot
  • 2 x PCIe 2.0 x1 slots

Onboard Graphics

  • 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
  • 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H

Storage

Intel® H310 Chipset

  • 4 x SATA 6Gb/s ports

USB

Intel® H310 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

Audio

Realtek® ALC887 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x RTL8111H Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 2 x Front panel connectors
  • 1 x Front panel audio connector
  • 1 x Serial port connector
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 4 x EZ Debug LED

Back panel ports

  1. PS/2 Combo Port
  2. VGA Port
  3. HDMI Port
  4. USB 3.1 Gen1
  5. LAN Port
  6. HD Audio Connectors
  7. USB 2.0 Port
  8. USB 2.0 Port
MSI H310M PRO-VH back panel ports

Dimensions

  • 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
  • m-ATX Form Factor

Mounting

6 mounting holes

Operating System

Support for Windows® 10 64-bit

Box content

MSI H310M PRO-VH box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
